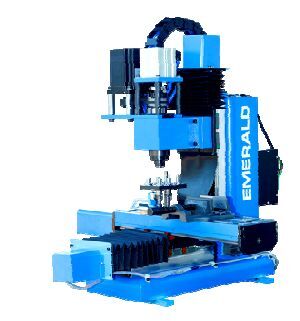

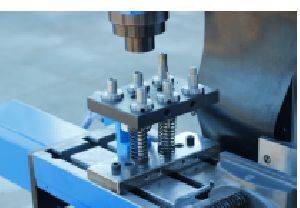

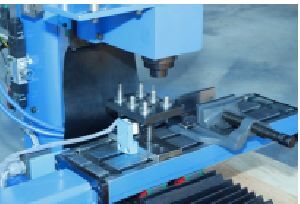

Mini CNC Milling Machine



Features:
1. Compact and Light weight .
2. Use of Precision LM guideways and ballscrews for
3. Low power consumption
4. Six station Automatic tool changer
5. Spindle control through software.
6. Automatic Lubrication (Optional)
7. Various options for CNC controllers: PC based Controllers/ SIEMENS/FANUC
8. Suitable for IITs, Engineering Colleges, and all types of small and medium organisations.



Controller Specifications :


General

  • Microprocessor : High-speed 32-bit
  • Program execution speed 500 blocks/sec standard
  • Axis control 2 axes linear, A axis optional
  • Interpolation G01, G02, G03
  • Cartesian-to-polar mapping (with optional C axis)
  • Min. input increment – inch mode 0.0001"
  • – metric mode 0.001 mm


Feed Functions :

  • Rapid Traverse Override 5%, 25%,
  • Feedrate Override 0% to 100% in 1% increments
  • Jog Resolution – inch mode 0.0001"/0.001"/0.01"/0.1"
  • – metric mode 0.001/0.01/0.1/1.0 mm
  • Jog Feeds – inch mode 0.1/1.0/10.0/100.0 ipm
  • – metric mode 1.0/10/100/1000 mm/min.



Spindle Functions

  • Speed Command S = 100 to max spindle rpm
  • Override 0% to 100% in 1% increments



Tool Functions

  • Length Compensation 80 sets, geometry & wear
  • Length Measurement : Automatic length storage



Programming

  • Compatibility ISO standard G code
  • Positioning X, Z Absolute (G90); U,W incremental (G91);
  • Y, V optional
  • Canned Cycles 10 functions standard
  • Inch/Metric Switchable
  • Work Coordinates 10 sets
  • Part Zero Set Automatic storage
  • Cutter Compensation



Data Input/Output

  • Communications Port RS-232, USB,



Memory Capacity

  • Standard 1 MB; up to 750 MB optional
  • Number of Programs 1000

Specifications

Brand EMERALD -ATC
Travel X axis 250mm
Travel Y axis 125mm
Travel: Z axis 125mm
Height of tool holder from table 20mm
Maximum work piece dimensions 400x125x75mm
T Slot 2mm or less
Spindle runout 0.01mm
Spinde Speed 100-2800RPM Infinitely variable
Spindle motor BLDC 0.4 KW
Threading Straight Taper
Automatic Tool Turret 6 Station
Automatic coolent control Optional
Automatic Lubrication Optional
Input System Metric/ Inch
Repeatability ± 0.01 mm
Type of Control system PC based system (32Bit)
Floor Area 900 mm x 800 mm
CNC controller Mach3/SIEMENS/FANUC/HUST
